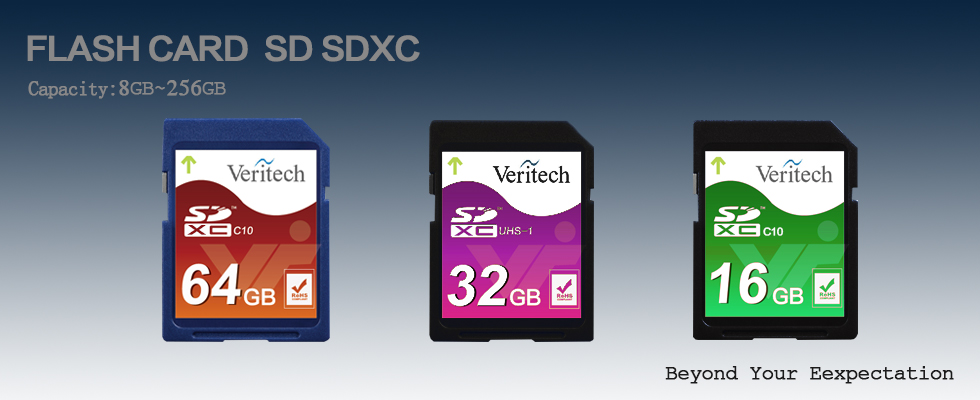

SD Card--SD/SDXC
Main Features
High speed
Excellent Reliability and Compatibility.
Security CPRM (Content Protection Recordable Media) support.
Support SPI Mode.
High Storage Capacity: 8GB-256GB.
Support ECC function to detect and correct data errors automatically.
Basic Specification
Capacity:8GB~256GB
Dimension: 32x24x2.1(mm)(1.26"x0.94"x0.08")
Weight: 2g
Operating temperature: -25°C(13°F) ~ 85°C(185°F)
Durability: 10,000 insertion/removal cycles
Voltage: 2.7V ~ 3.6V
Data Transfor Rate:
* Up to 95MB/sec read rate (Max)
* Up to 60MB/sec write rate (Max)
* Class 10,UHS-1 U1,UHS-1 U3
