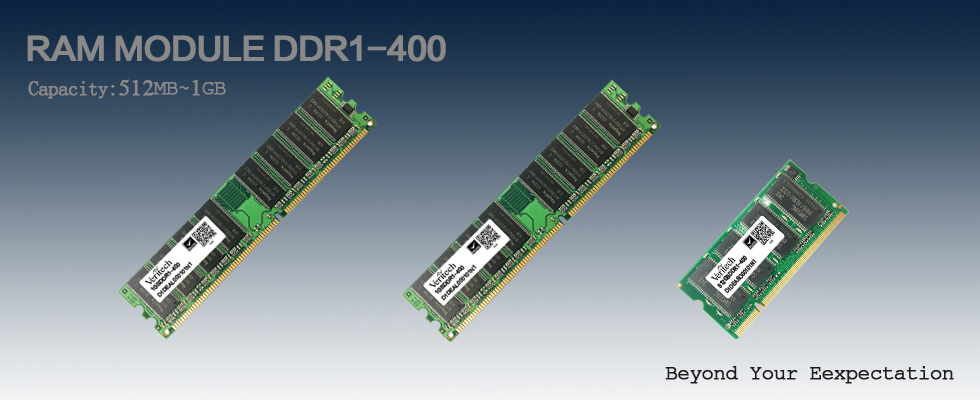

Desktop DDR-400
Feature
- 2.6V±0.1V power supply.
- Double-data-rate architecture; two data transfers per clock cycle.
- Bidirectional data strobe [DQ] (x4,x8) & [L(U)DQS] (x16).
- Differential clock inputs(CK and /CK).
- DLL aligns DQ and DQS transition with CK transition.
- Programmable Read latency 2.5,3 (clock) for DDR400.
- Programmable Burst length (2, 4, 8).
- Programmable Burst type (sequential & interleave).
- Edge aligned data output, center aligned data input.
- Auto & Self refresh, 7.8 us refresh interval(8K/64ms refresh).
- Serial presence detect with EEPROM.
- PCB : Height 1,250 (mil) & single (256, 512MB), double (1GB) sided.
- SSTL_2 Interface.
|
