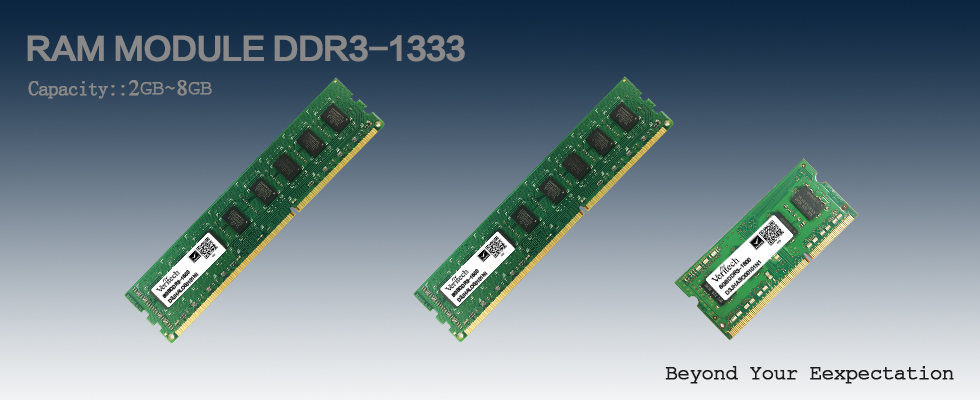

Desktop DDR3-1333
Specifications
- Package:
* 78-ball FBGA for x 8 and 96-ball FBGA for x 16
* Lead-free(ROHS compliant)and Halogen-free.
- Power supply: VDD,VDDQ=1.35V (1.283V to 1.45V)
* Backward compatible to VDD,VDDQ=1.5V ± 0.075V
- Data rate:1333Mbps/1600Mbps
- 1KB page size for x 8 / 2KB page size for x 16
* Row address:A0 to A14.
* Row address:A0 to A13.
* Column address:A0 to A9.
- Eight internal banks for concurrent operation
- Burst lengths(BL):8 and 4 with Burst Chop(BC)
- Burst type(BT)
* Sequential (8,4 with BC).
* Interleave(8,4 with BC).
- CAS Latency(CL):5,6,7,8,9,10,11,13
- CAS Write Latency(CWL):5,6,7,8,9
- Precharge:auto precharge option for each burst access
- Driver strength:RZQ/7,RZQ/6(RZQ=240Ω)
- Refresh:auto-refresh,self-refresh
- Refresh cycles:
* Average refresh period.
* 7.8μs at 0° C ≤ Tcase ≤ 85° C.
* 3.9μs at 85° C ≤ Tcase ≤ 105° C.
- Operating case temperature range
* Commercial Temperature product 0° C ≤ Tcase ≤ 95° C.
* Industrial Temperature product -40° C ≤Tcase ≤ 95° C.
* High Temperature product -40° C ≤Tcase ≤ 105° C.
|
| Density (Mbytes) |
Organization |
Speed |
| 2GB |
256M x 8 (8 Banks x 32 Mbit x 8 )32M (words x 8bits x 8 banks)16M (words x 16bits x 8 banks) |
DDR3 1333 |
4GB |
512M x 8 (8 Banks x 64 Mbit x 8 )128M (words x 4bits x 8 banks)64M (words x 8bits x 8 banks)32M (words x 16bits x 8 banks) |
DDR3 1333 |
8GB |
512M x 8 x 2 (8 Banks x 64 Mbit x 8 x 2 Ranks )128M (words x 4bits x 8 banks x 2 ranks)64M (words x 8bits x 8 banks x 2 ranks)32M (words x 16bits x 8 banks) |
DDR3 1333 |
