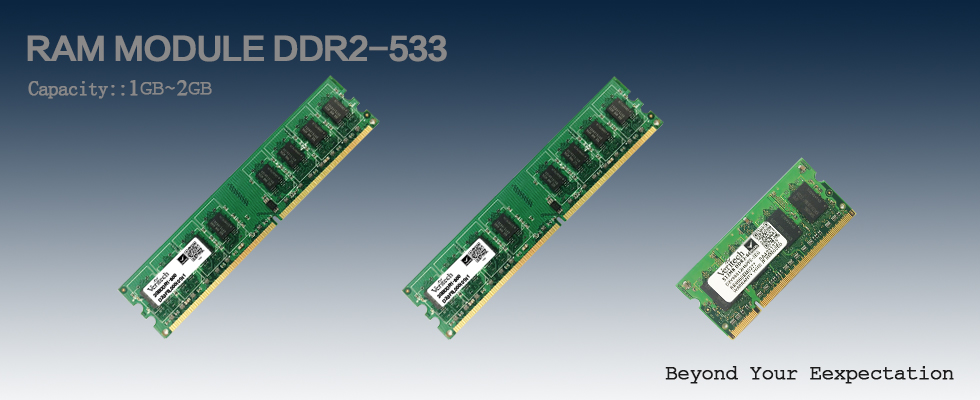

Desktop DDR2-533
Feature
- JEDEC standard 1.8V± 0.1V Power Supply.
- VDDQ = 1.8V± 0.1V
- 267MHz fCK for 533Mb/sec/pin
- 4 Banks/8 Banks
- Posted /CAS
- Programmable /CAS Latency: 4,5.
- Programmable Additive Latency: 0, 1 , 2 , 3 and 4.
- Write Latency(WL) = Read Latency(RL) -1.
- Burst Length : 4 , 8(Interleave/nibble sequential).
- Programmable Sequential / Interleave Burst Mode.
- Bi-directional Differential Data-Strobe (Single-ended data-strobe is an optional feature).
- Off-Chip Driver(OCD) Impedance Adjustment.
- On Die Termination with selectable values(50/75/150 ohms or disable).
- PASR(Partial Array Self Refresh).
- Average Refresh Period 7.8us at lower than a TCASE 85°C, 3.9us at 85°C < TCASE < 95°C.
* support High Temperature Self-Refresh rate enable feature.
- All of Lead-free products are compliant for RoHS.
|
